Collapsible aluminium tube lines

The whole tube line, from slug to sealed carton.

XUNTANG designs and builds turnkey production lines for collapsible aluminium tubes — the soft metal tubes behind cosmetics, ointments and pharmaceutical creams. Sixteen stations across twelve process steps, coordinated by one control system, at 80–90 tubes a minute.

Request a quote See the production line

Turnkey line, single supplier
Siemens control on every station
Installed across Europe, East & West Asia

Line at a glance XT-S26 · XT-L26

16Stations, fully integrated

12Process steps, end to end

80–90Tubes per minute (reference)

240+Lines installed worldwide

Two turnkey formats cover Ø 13.5–35 mm tubes for cosmetics, personal care and pharmaceutical packaging — built and commissioned as a single line.

Why buyers choose XUNTANG

Twenty-eight years spent on one thing — tube lines.

We do not build a bit of everything. We build the collapsible aluminium tube line, and we have installed more than 240 of them across Europe, East Asia and West Asia.

Proven experience

28+ years focused on aluminium tube lines, with 240+ lines installed worldwide across Europe, East Asia and West Asia.

Matching specifications

Tubes from 13.5–22 mm and 22–35 mm diameter, running stably at 80–90 pcs/min.

Efficient & reliable

Servo control, quick specification switching and low energy consumption across every station.

Flexible customization

Layout, leak detection and automatic packing are configured to fit your factory floor.

Coordinated operation

PLC-controlled synchronised operation, customizable timing and Wi-Fi remote monitoring.

One line · 16 stations · 12 processes

Every step, engineered to hand off to the next.

Line configuration & layout

An aluminium slug goes in one end; a printed, capped, leak-tested and sealed tube comes out the other. Follow the twelve steps below.

01 Slug feed & press Impact-extrude lubricated slugs into seamless blanks. 02 Trim & thread Roll thread, face head, trim tail, polish shoulder. 03 Anneal Relieve stress, restore ductility, clean lubricant off. 04 Buffer Cool and accumulate to sync line pace. 05 Internal coat Spray the inner protective film. 06 Cure Bake the internal coating to a stable film. 07 Base coat Even exterior base — the printing ground. 08 Print Up to 6-colour offset print + cure. 09 Leak test Continuous air-tightness inspection & sort. 10 Cap Torque-screw plastic caps automatically. 11 Tail latex Apply the tail sealant ring. 12 Pack Count, arrange and carton finished tubes.

XT-S26

Small-format tube line

Tube diameter Ø 13.5 – 25 mm
Tube length 70 – 145 mm
Speed up to 95 pcs/min

Slim tubes for eye cream, lip balm, sample sizes, ointments and pharmaceutical creams.

XT-L26

Large-format tube line

Tube diameter Ø 19 – 35 mm
Tube length 110 – 200 mm
Speed 80 – 90 pcs/min

Standard and larger tubes for hand cream, toothpaste-style cosmetics, hair colour and topical medicine.

The twelve machines

Each machine, built for its station.

All machines & specs

STEP 01

JA05 / JA06

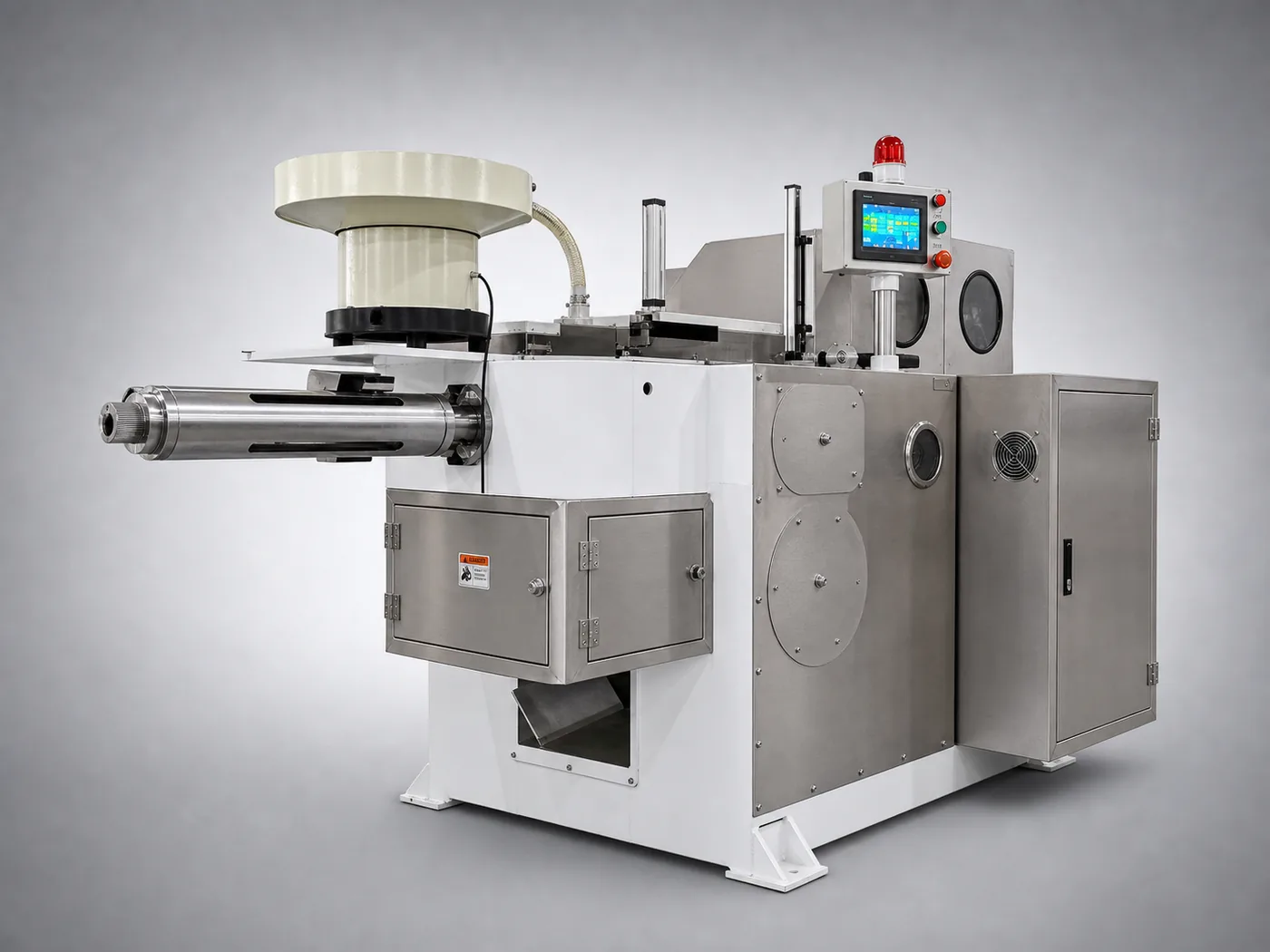

Extrusion Press

One-step impact extrusion forms lubricated aluminium slugs into seamless tube blanks.

View specifications

STEP 02

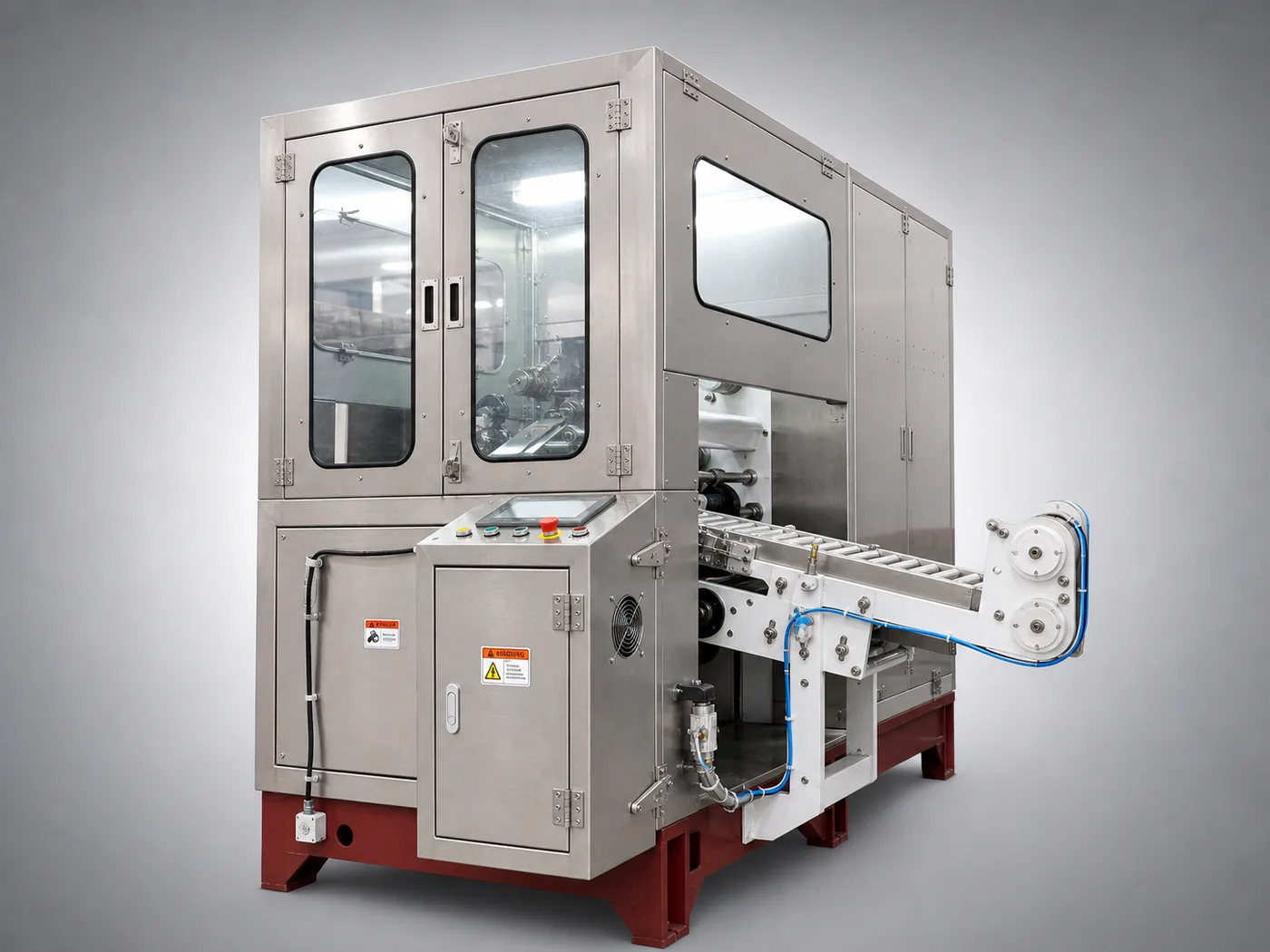

LW07

Trimming & Threading Machine

Thread rolling, head facing, tail trimming and shoulder polishing shape the raw blank.

View specifications

STEP 03

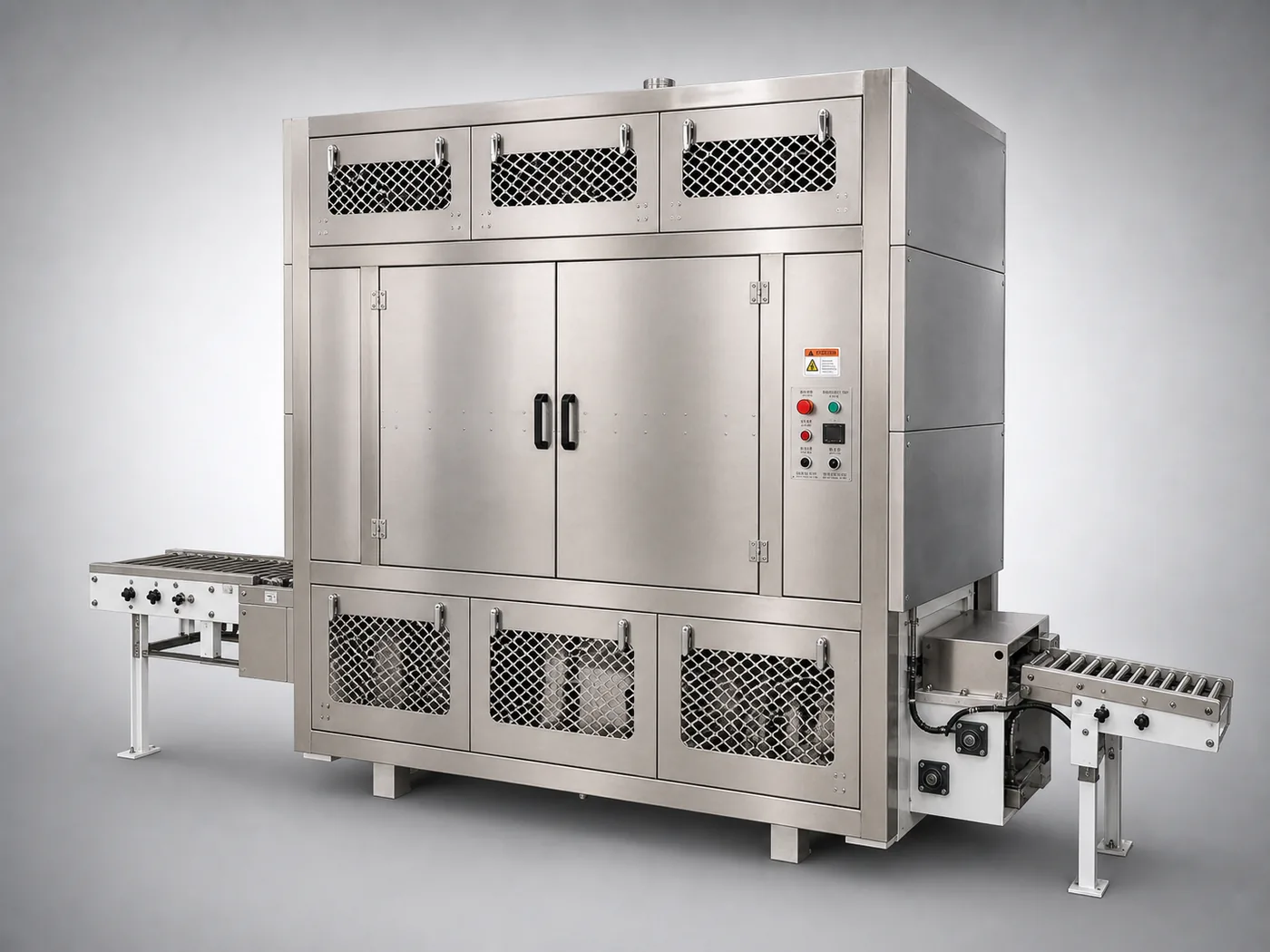

TH09

Annealing Oven

Relieves work-hardening stress and burns off lubricant for reliable coating adhesion.

View specifications

STEP 04

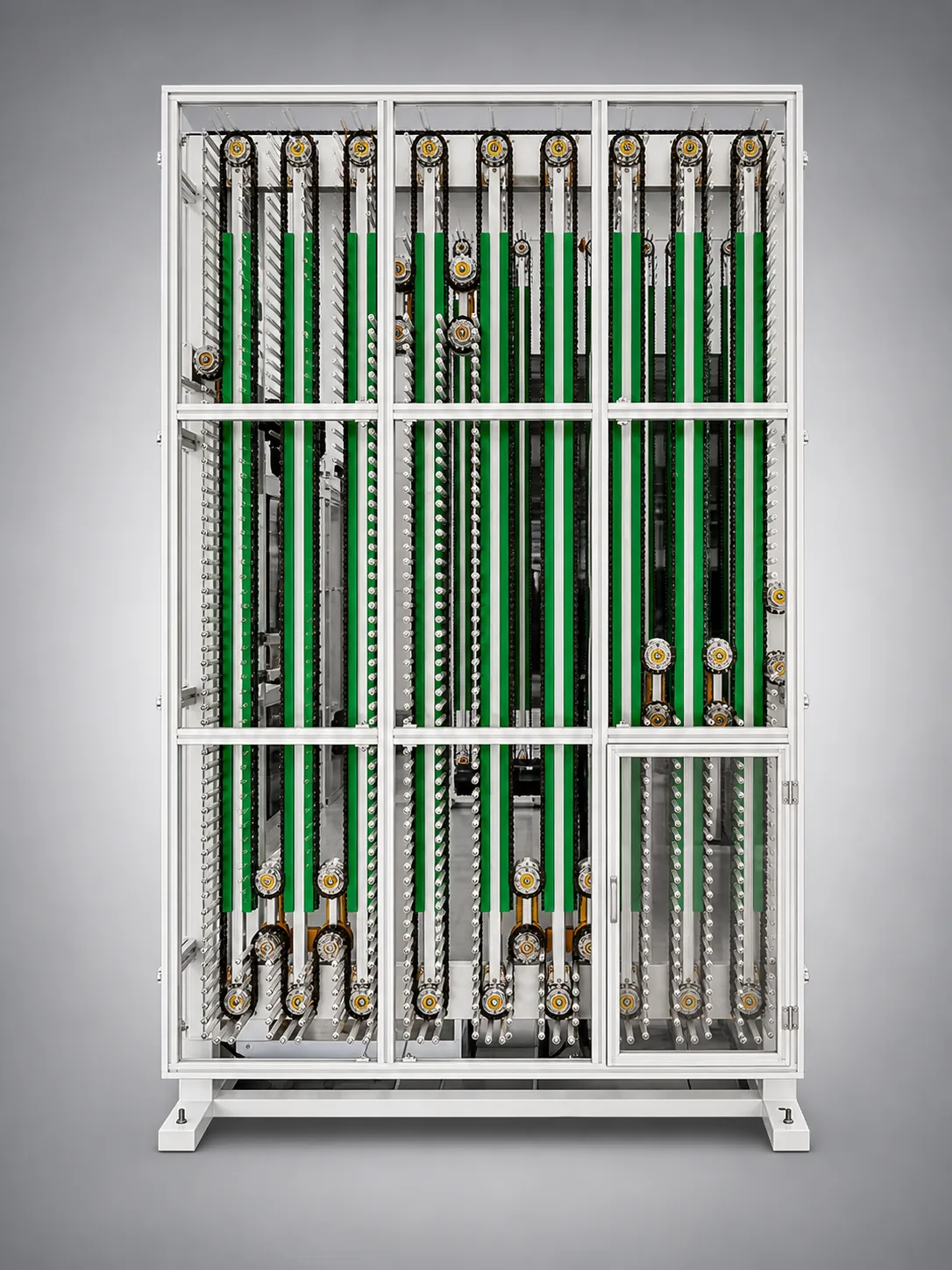

CJ04

Buffer Accumulator

Cools and buffers tubes on-line to synchronise upstream and downstream pace.

View specifications

STEP 05

PT02

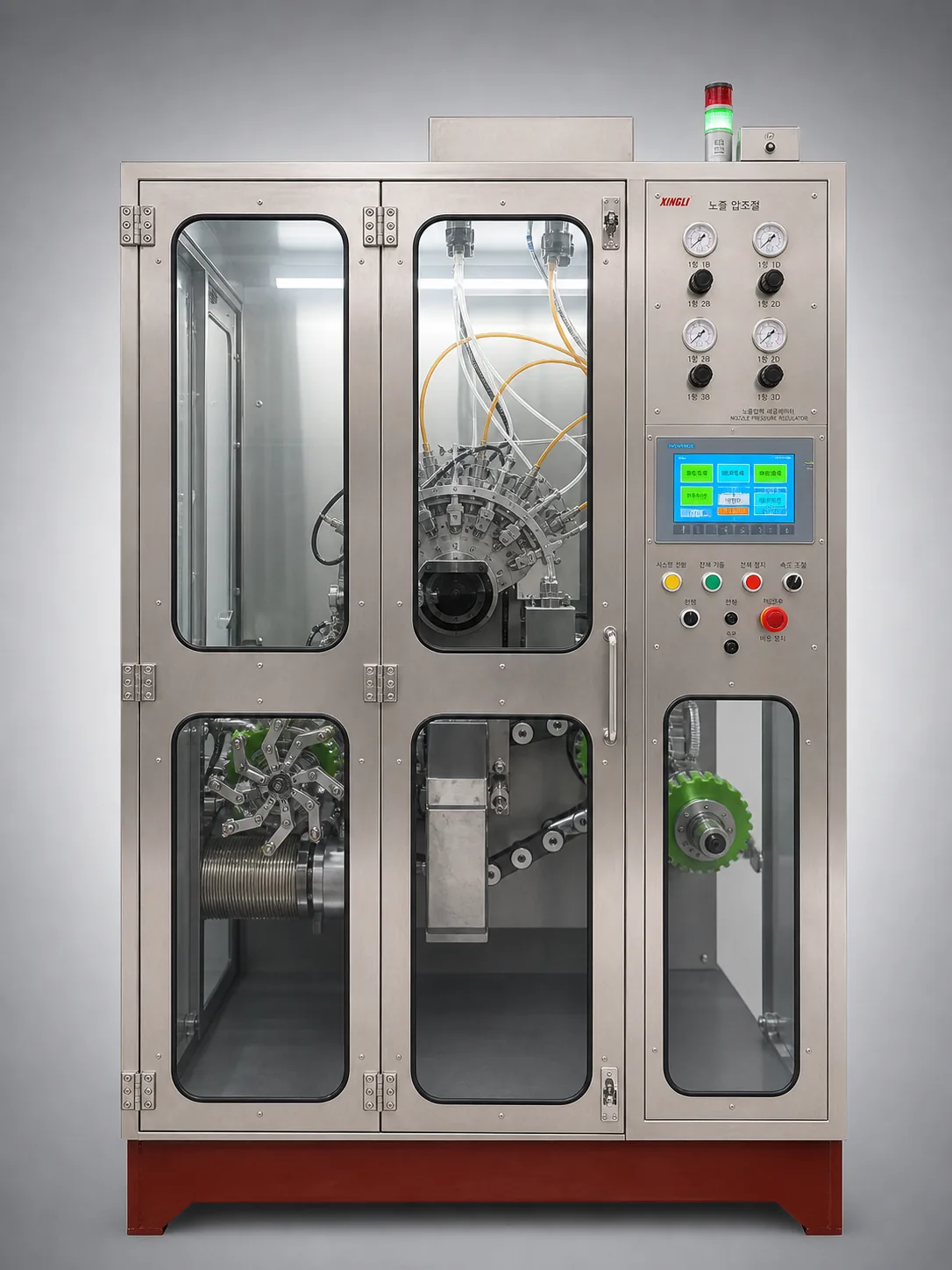

Internal Coating Machine

Servo-positioned spray lines the tube interior with a chemically stable protective film.

View specifications

STEP 06

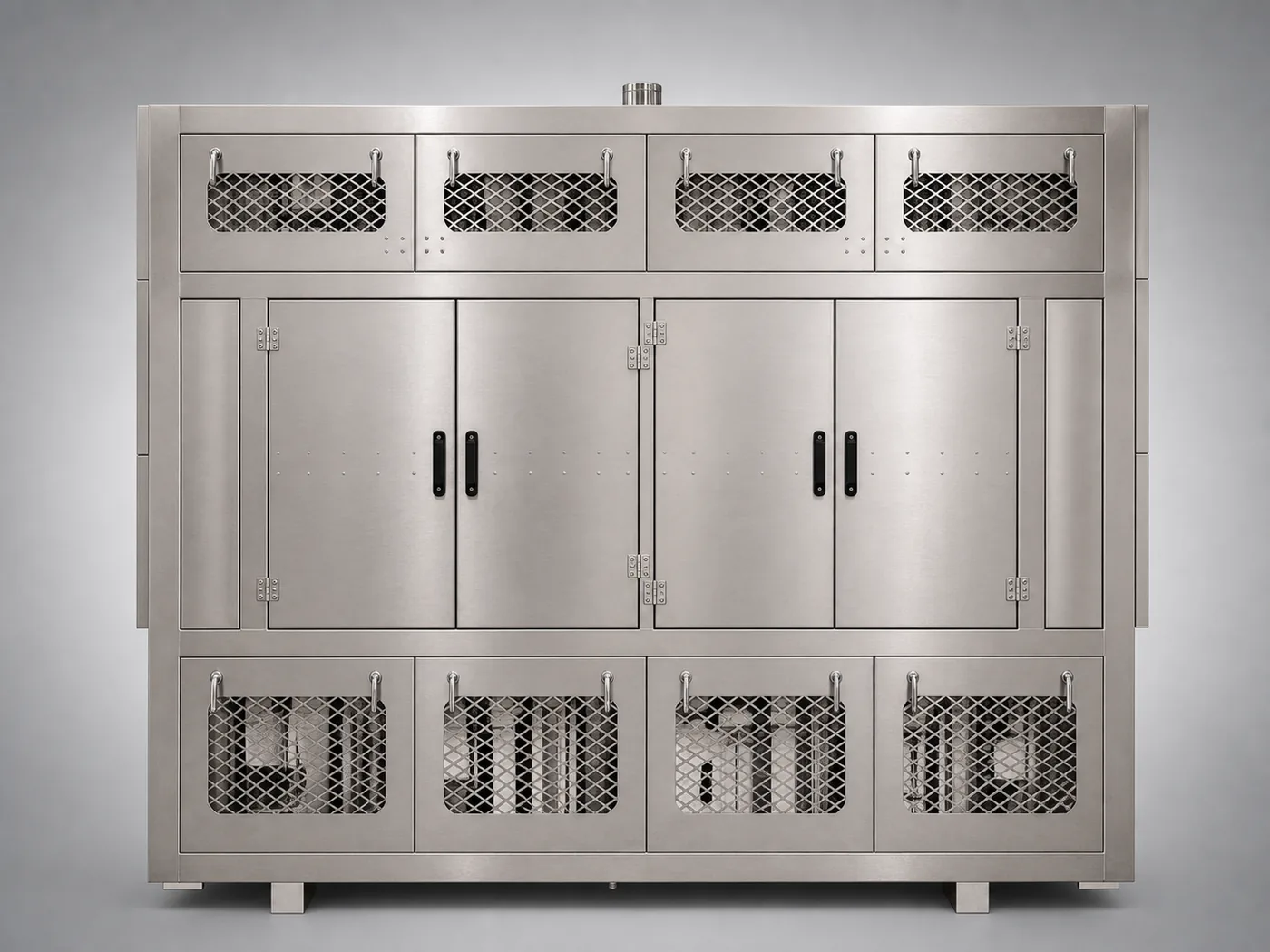

GH07

Curing Oven

Suspended oven cures the internal coating with precise, uniform heat.

View specifications

STEP 07

DS06

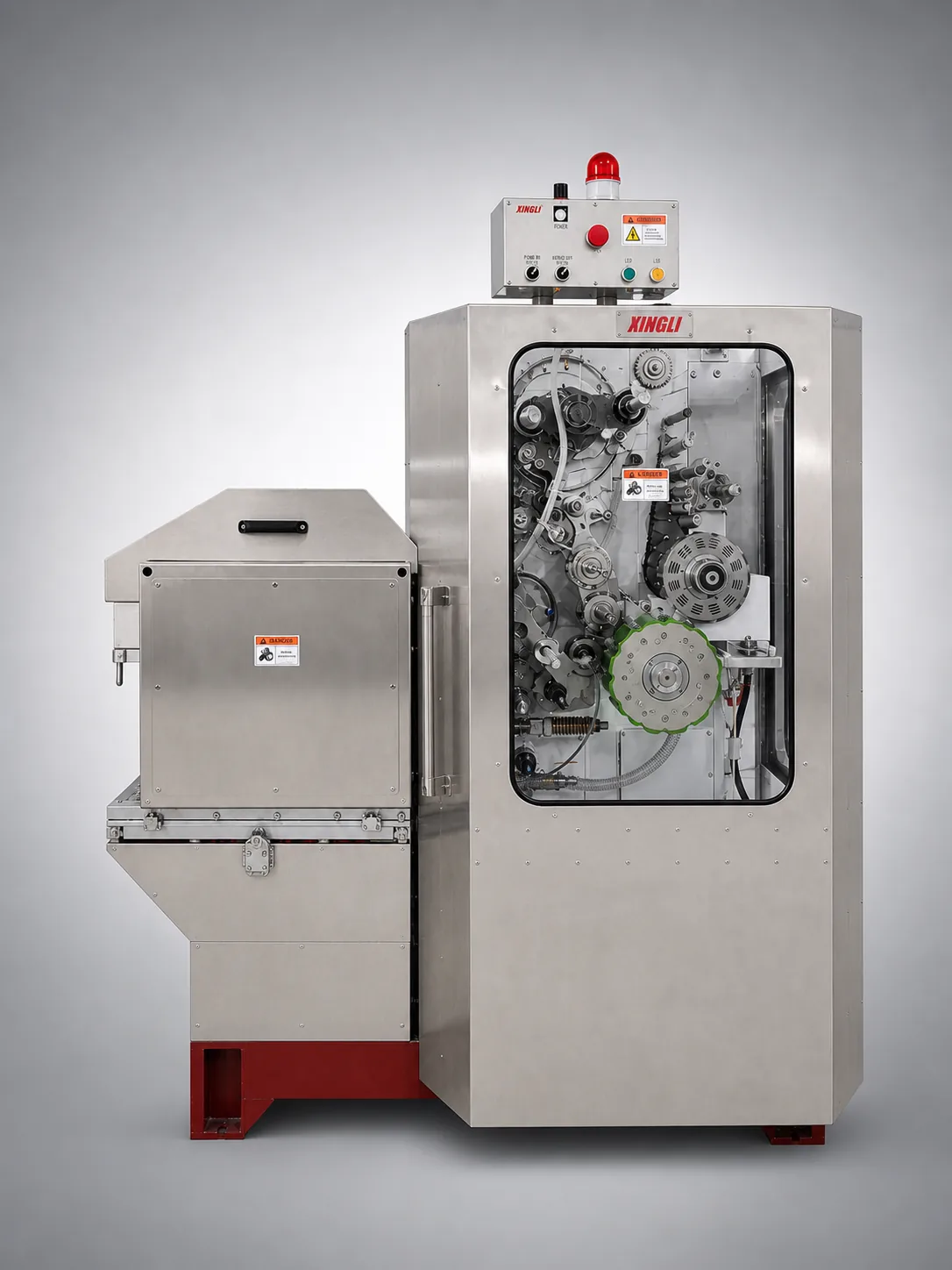

Base Coating Machine

Lays an even base coat over the tube exterior — a clean, durable printing ground.

View specifications

STEP 08

YS05

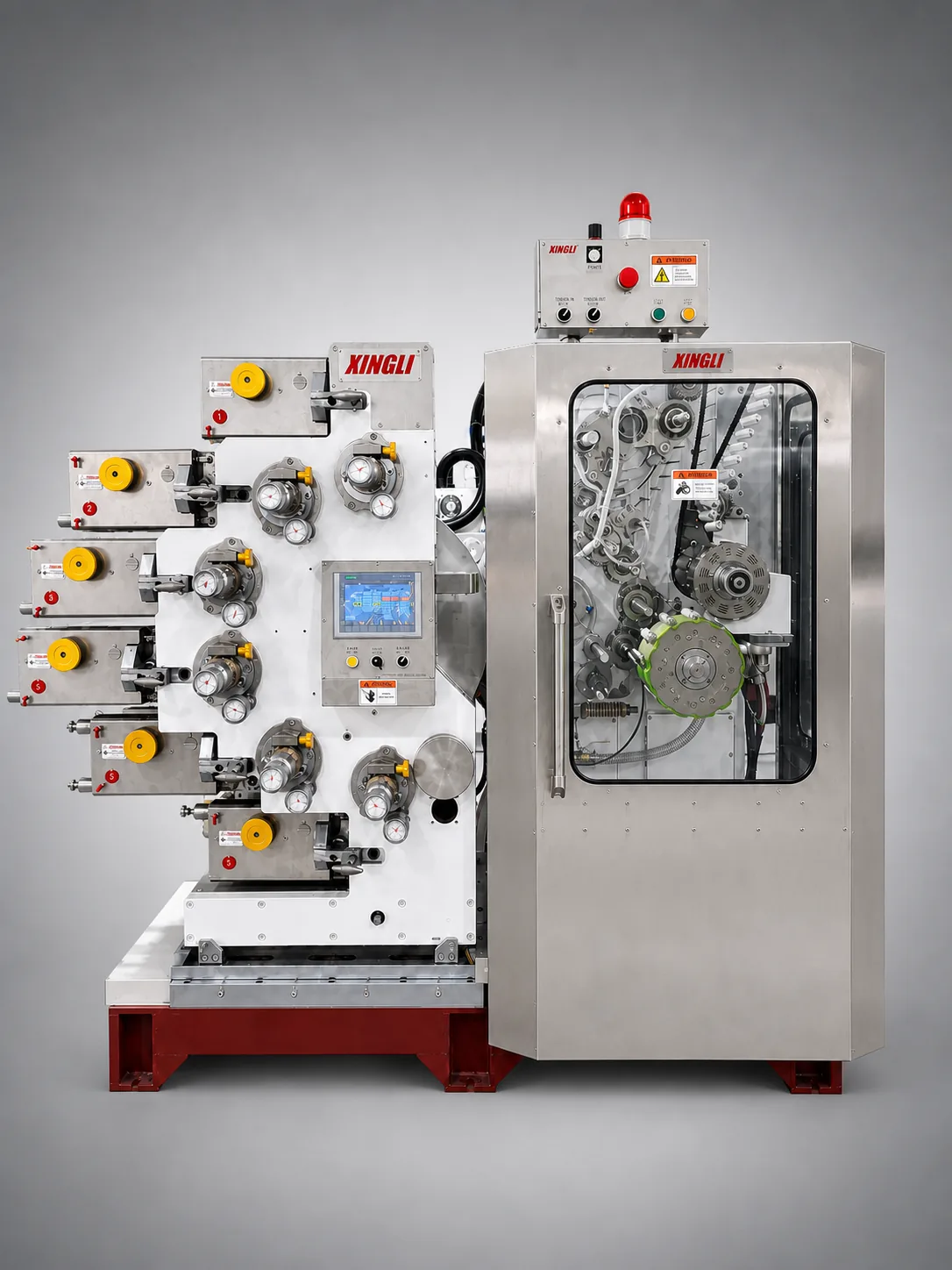

Printing Machine

Up to 6-colour offset printing with thermal curing for crisp, vivid artwork.

View specifications

STEP 09

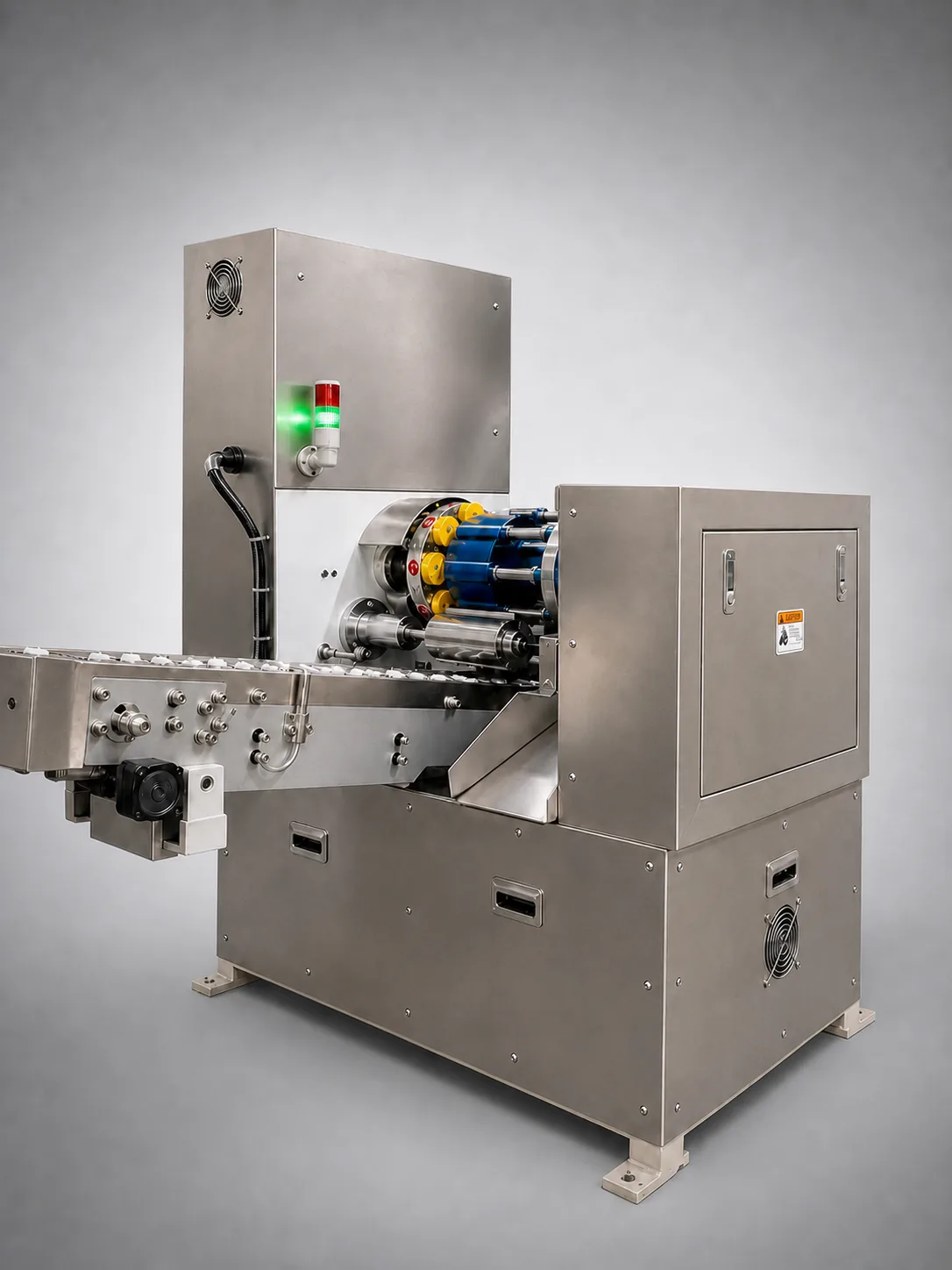

CL02

Leak Detector

Continuous airtight testing sorts out micro-leaks without slowing the line.

View specifications

STEP 10

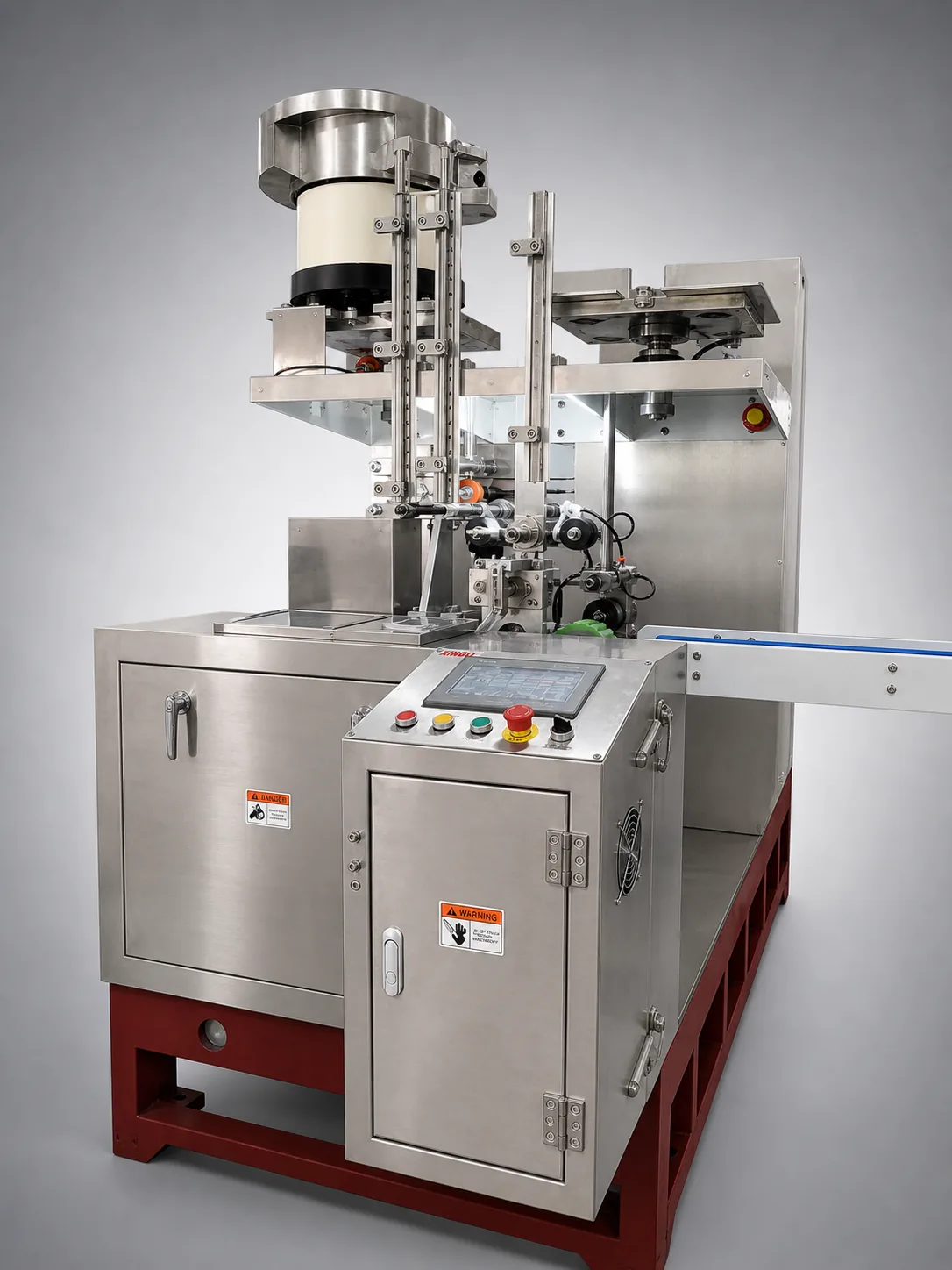

SG04

Capping Machine

Automatically feeds and torque-screws plastic caps onto printed, leak-tested tubes.

View specifications

STEP 11

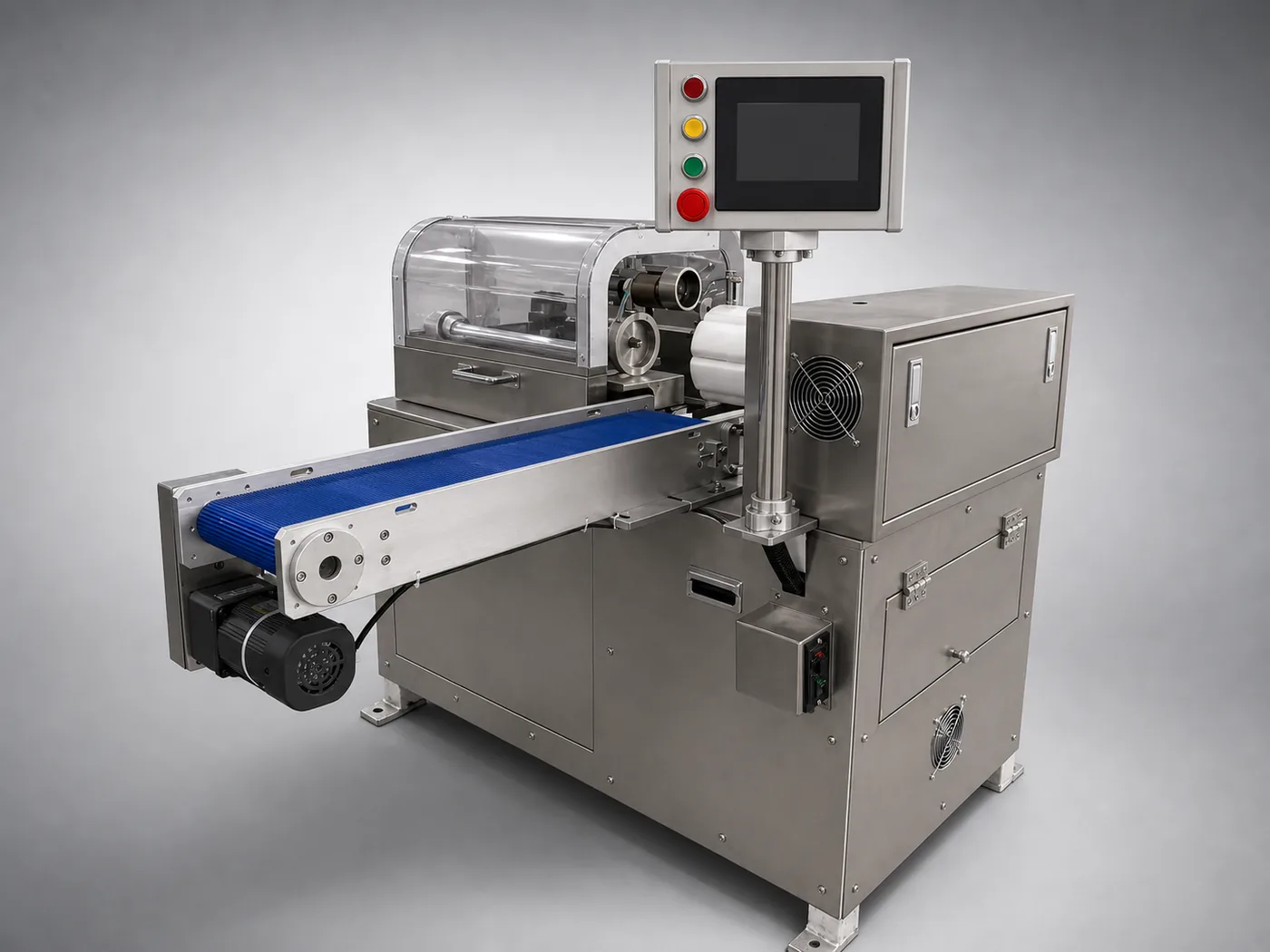

WJ04

Latexing (Tail Sealing) Machine

Applies an even sealant ring to the tube tail for a firm, leakproof end seal.

View specifications

STEP 12

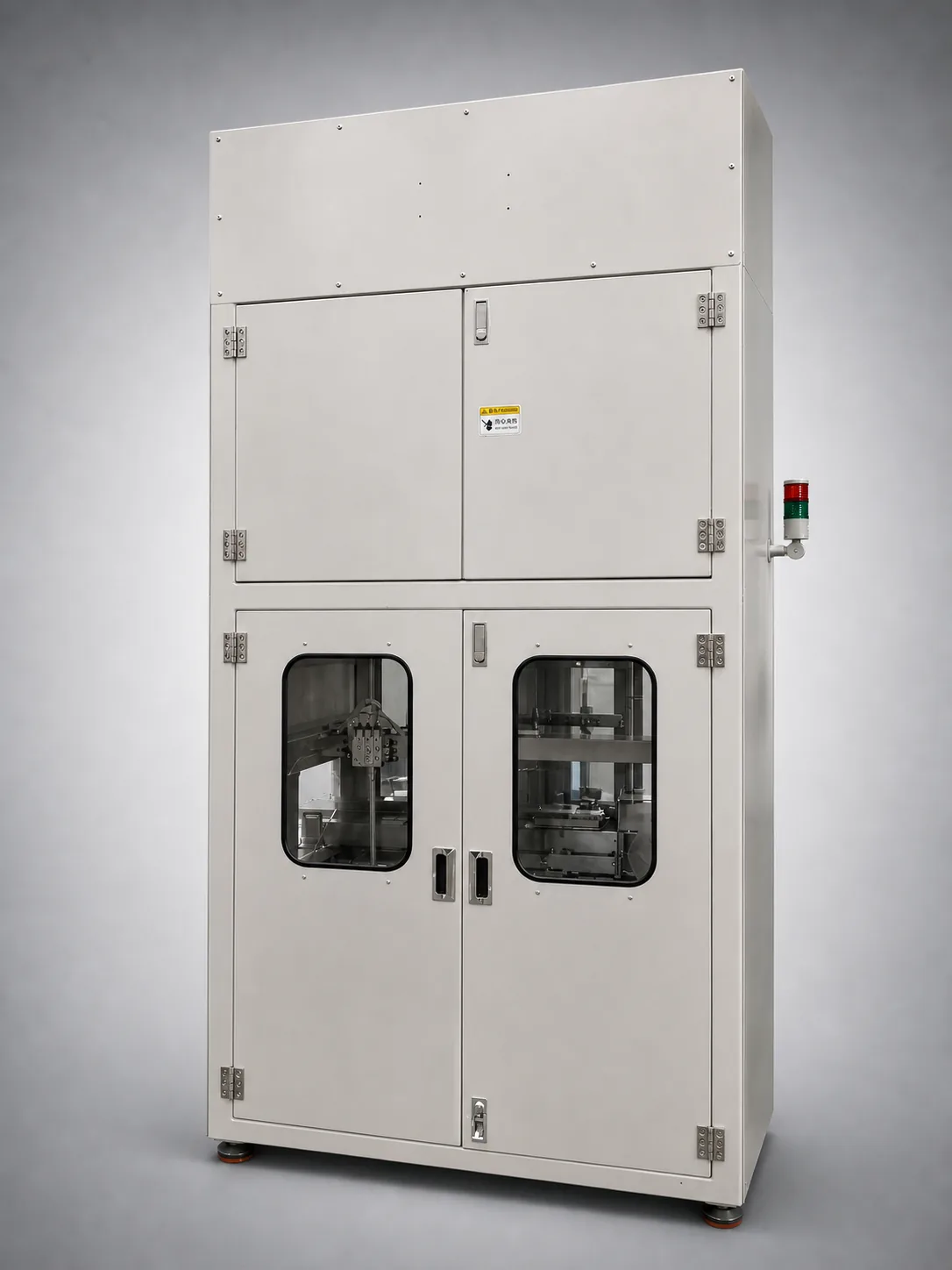

ZH07

Packing Machine

Automatic cartoner counts, arranges and boxes finished tubes.

View specifications

Built on trusted components

SIEMENS control on every station.

Reliability starts with the parts inside. XUNTANG lines run SIEMENS PLC, servo drives and touch screens, with Schneider, Omron, SMC, FESTO and NSK/NTN components — so maintenance parts are available anywhere you operate.

SIEMENS Schneider Omron SMC / FESTO NTN / NSK / IKO

Component	Brand	Origin
PLC	SIEMENS	Germany
Servo motor & driver	SIEMENS	Germany
Touch screen	SIEMENS	Germany
Main motor	Taibang GPG · Shanghai	China
Proximity switch	Schneider	Germany
Relay	Omron	Japan
Pneumatic components	SMC · FESTO · Yadeke	Japan / Germany / China
Main bearing	NTN · NSK · IKO · HRB	Japan / China

Brands listed reflect the standard configuration; equivalent options can be specified per order.

Before you enquire

Common questions

What is a collapsible aluminium tube making line?

It is a fully automated line that turns aluminium slugs into finished, printed, capped and sealed collapsible tubes — the soft metal tubes used for cosmetics, ointments and pharmaceutical creams. XUNTANG builds the whole line as 16 integrated stations across 12 process steps, from impact extrusion to automatic cartoning.

What production speed can the line reach?

The line runs stably at 80–90 pcs/min, and the small-format line can reach up to 95 pcs/min. These figures are a reference for planning, not a contractual guarantee — actual throughput depends on tube size, artwork, coating and your factory conditions, which we confirm together before quotation.

Which machines are included in a complete line?

A standard line includes the extrusion press, trimming/threading machine, annealing oven, buffer accumulators, internal coating machine, curing oven, base coating machine, printing machine, leak detector, capping machine, latexing (tail sealing) machine and packing machine — plus the polymerization ovens and elevators shown in the 16-station layout.

What information should I provide before a quotation?

Tell us your tube diameter and length range, target output per minute, number of print colours, coating requirements, and the space available on your factory floor. With that we recommend the right line format (XT-S26 or XT-L26), configuration and layout.

Start a project

Tell us your tube size and output. We'll design the line.

Diameter, length, target speed, print colours and floor space — that is all we need to recommend a format and layout. Replies within 24 hours.

Request a quote sales@xttbag.com
